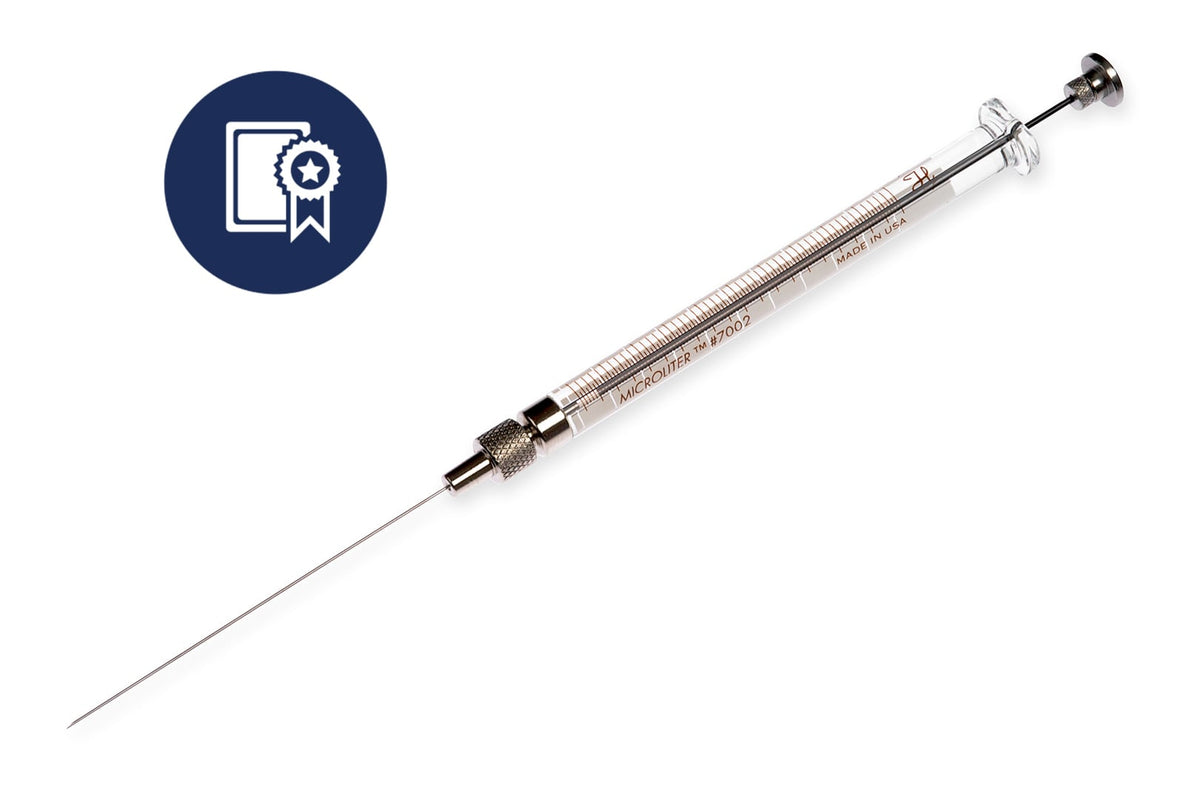

2 µL, Microliter Syringe Knurled Hub (KH), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL88411
In stock
The 7000 series syringes are considered modified Microliter syringes for their unique zero dead volume design. This syringe series is ideal for dispensing volumes from 0.05 μL up to 5 μL. The fine gauge plunger wire extends all the way to the tip of the needle ensuring that all solvent is expelled from the needle. Therefore, it is not recommended to remove the needle or plunger.
| Model Number | Volume | Needle Inner Diameter (I.D.) | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 7000.5 | 0.5 µL | 0.104 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7001 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7101 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7002 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7102 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7105 | 5 µL | 0.325 mm | 60 mm | 41 MPa | 10 - 115 °C |
Specifications
| Volume | 2 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 7000 |
| Termination | Knurled Hub (KH) |
| Needle | Knurled Hub (KH) |
| Gauge | 25 gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2.75 inches (69.9 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Tungsten, Borosilicate Glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 6000 psig (413.7 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.0081 inches (0.206 mm) |
| Barrel Outer Diameter | 0.308 inches (7.82 mm) |
| Needle Inner Diameter | 0.0081 inches (0.206 mm) |
| Needle Outer Diameter | 0.020 inches (0.515 mm) |
| Std Needle Dead Volume | 0 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 7002 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.0081 inches (0.206 mm)
- Barrel outer diameter 0.308 inches (7.82 mm)
- Fluid path SST, Tungsten, Borosilicate Glass
- Gas sterilizable Yes
- Gauge 25 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Knurled Hub (KH)
- Needle inner diameter 0.0081 inches (0.206 mm)
- Needle length 2.75 inches (69.9 mm)
- Needle outer diameter 0.020 inches (0.515 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 6000 psig (413.7 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0 µL
- Sub category Microliter Syringes
- Syringe model number 7002
- Syringe series 7000
- Syringe type Microliter
- Termination Knurled Hub (KH)
- Volume 2 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
