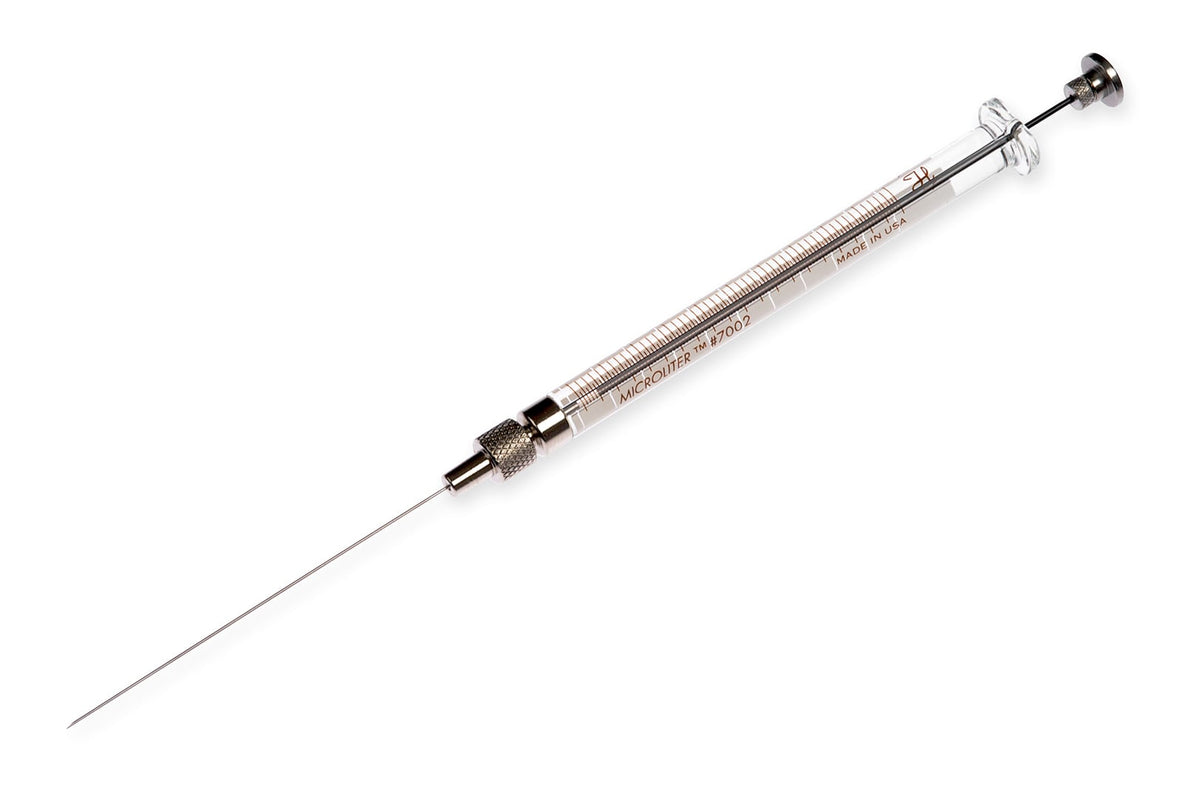

2 µL, Microliter Syringe Knurled Hub (KH)
Vendor: Hamilton Company
SKU: 88411
In stock
Hamilton's 7000 series, Microliter #7002 Knurled Hub (KH) Syringe is designed for manual dispensing and use in autosamplers
The 7000 series syringe offers unmatched accuracy – it's the only true zero-dead volume syringe on the market. Our innovative plunger-in-needle design, featuring a fine-gauge tungsten plunger wire extending to the very tip of the needle, guarantees complete solvent delivery, eliminating waste and maximizing the value of your precious samples. Due to this plunger-in-needle design, it is not recommended to remove the needle or plunger. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Please see the 7000 Syringe Series Operating Parameters for complete specifications.
Common applications Veterinary Sciences, Analytical Chemistry, Gas Chromatography Mass Spectrometry (GC-MS)
Specifications
| Volume | 2 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 7000 |
| Termination | Knurled Hub (KH) |
| Needle | Knurled Hub (KH) |
| Gauge | 25 gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2.75 inches (69.9 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Tungsten, Borosilicate Glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 6000 psig (413.7 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.0081 inches (0.206 mm) |
| Barrel Outer Diameter | 0.308 inches (7.82 mm) |
| Needle Inner Diameter | 0.0081 inches (0.206 mm) |
| Needle Outer Diameter | 0.020 inches (0.515 mm) |
| Std Needle Dead Volume | 0 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 7002 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.0081 inches (0.206 mm)
- Barrel outer diameter 0.308 inches (7.82 mm)
- Fluid path SST, Tungsten, Borosilicate Glass
- Gas sterilizable Yes
- Gauge 25 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Knurled Hub (KH)
- Needle inner diameter 0.0081 inches (0.206 mm)
- Needle length 2.75 inches (69.9 mm)
- Needle outer diameter 0.020 inches (0.515 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 6000 psig (413.7 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0 µL
- Sub category Microliter Syringes
- Syringe model number 7002
- Syringe series 7000
- Syringe type Microliter
- Termination Knurled Hub (KH)
- Volume 2 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
