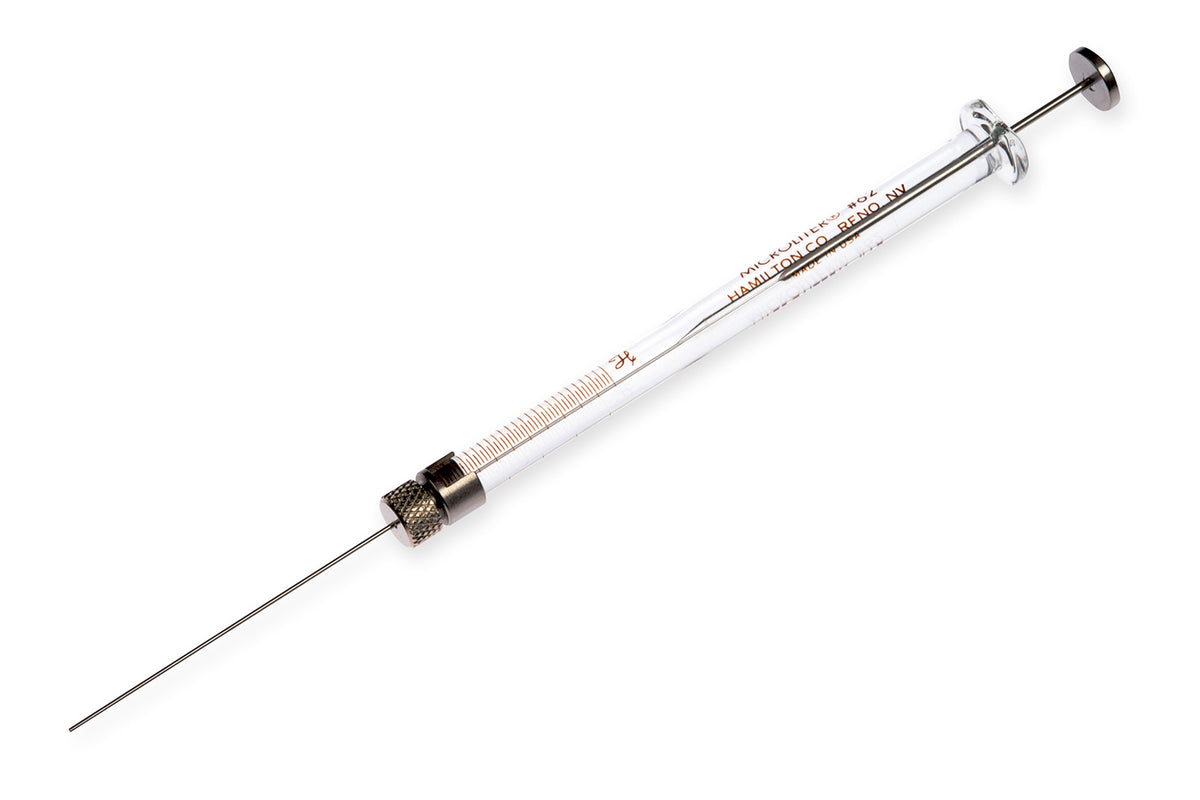

2.5 µL, Microliter Syringe, Removable Needle (RN)
Vendor: Hamilton Company
SKU: 87942
In stock
Hamilton's 600 series, Microliter #62 Removable Needle (RN) Syringes are a rugged, durable, and long-lasting half-stroke version of Hamilton’s original 700 series syringes. They have a reinforced plunger which prevents plunger bending. Each plunger is individually fitted to the glass barrel and cannot be interchanged between syringes. This syringe series is ideal for dispensing volumes from 0.25 µL up to 5 µL. In addition, because of the shorter stroke length, the 600 series syringes can be used for one-handed applications.
Compatible with Small RN Hub Needles
Specifications
| Volume | 2.5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 600 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 22s gauge |
| Point Style | 3: Blunt |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.014 inches (0.343 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.028 inches (0.711 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 62 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.014 inches (0.343 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.028 inches (0.711 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Microliter Syringes
- Syringe model number 62
- Syringe series 600
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 2.5 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
