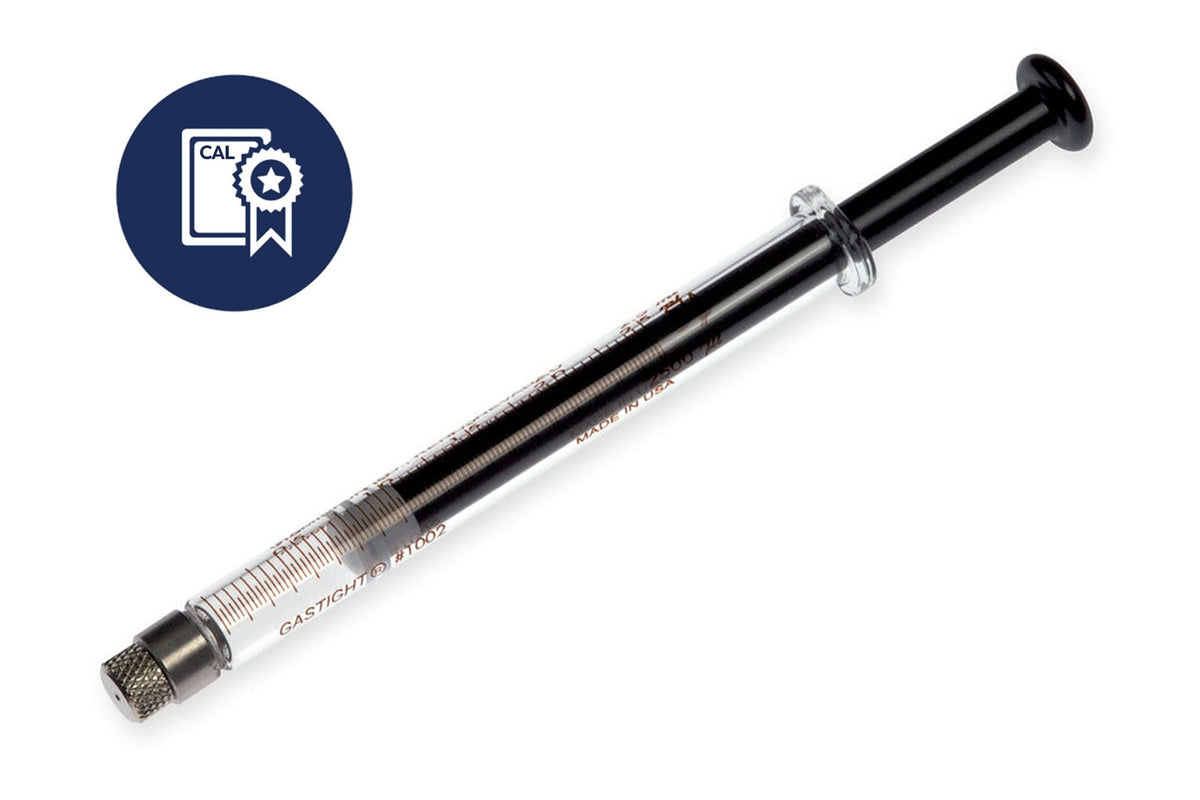

2.5 mL Gastight Syringe, Removable Needle (RN), Calibrated Syringe

Name: 2.5 mL Gastight Syringe, Removable Needle (RN), Calibrated Syringe
Brand: Hamilton Company
SKU: CAL7650-01
Price: 1329.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: CAL7650-01

1,329.00 NIS

Stock on Request

In stock

Hamilton 1000 series syringes dispense liquid and gas volumes in a multitude of applications like gas chromatography (GC), liquid chromatography (LC), analytical chemistry, and more. Designed for consistently leak-free performance, every Hamilton 1000 gastight syringe features a PTFE plunger tip to prevent sample loss. Additionally, a precision-machined glass syringe barrel makes the Hamilton 1000 gastight syringe an ideal choice when handling volatile gases and liquids with precise accuracy.

Choose from multiple sizes and options to match your scientific or analytical workflow and personal preference.

Model Number	Volume	Barrel Inner Diameter	Stroke Length	Operating Pressure	Operating Temperature
1001	1 mL	4.61 mm	60 mm	1 MPa	10 - 115 °C¹
1002	2.5 mL	7.29 mm	60 mm	1 MPa	10 - 115 °C¹
1005	5 mL	10.30 mm	60 mm	1 MPa	10 - 115 °C¹
1010	10 mL	14.57 mm	60 mm	1 MPa	10 - 115 °C¹
1025	25 mL	23.03 mm	60 mm	0.7 MPa	10 - 80 °C¹
1050	50 mL	32.54 mm	60 mm	0.7 MPa	10 - 80 °C¹
1100	100 mL	32.54 mm	120 mm	0.7 MPa	10 - 80 °C¹

¹ If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.

Specifications

Volume	2.5 mL
Syringe Type	Gastight
Syringe Series	1000
Termination	Removable Needle (RN)
Needle	Large RN
Gauge	No Needle Included
Point Style	No Needle Included
Needle Length	No Needle Included
Plunger Style	Standard Plunger
Fluid Path	Borosilicate glass, PTFE SST, Borosilicate glass, PTFE
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	200 psig (13.8 bar)
Maximum Operating Temperature	80°C / 176°F
Minimum Operating Temperature	10°C / 50°F
Barrel Inner Diameter	0.287 inches (7.29 mm)
Barrel Outer Diameter	0.407 inches (10.3 mm)
Std Needle Dead Volume	N/A
Sales Quantity	1 syringe per pack
Syringe Model Number	1002

Documents

Specifications

Autoclavable Yes
Barrel inner diameter 0.287 inches (7.29 mm)
Barrel outer diameter 0.407 inches (10.3 mm)
Fluid path Borosilicate glass, PTFE SST, Borosilicate glass, PTFE
Gas sterilizable Yes
Gauge No Needle Included
Maximum operating temperature 80°C / 176°F
Minimum operating temperature 10°C / 50°F
Needle Large RN
Needle length No Needle Included
Plunger style Standard Plunger
Point style No Needle Included
Pressure 200 psig (13.8 bar)
Sales quantity 1 syringe per pack
Std needle dead volume N/A
Sub category Gastight Syringes
Syringe model number 1002
Syringe series 1000
Syringe type Gastight
Termination Removable Needle (RN)
Volume 2.5 mL
