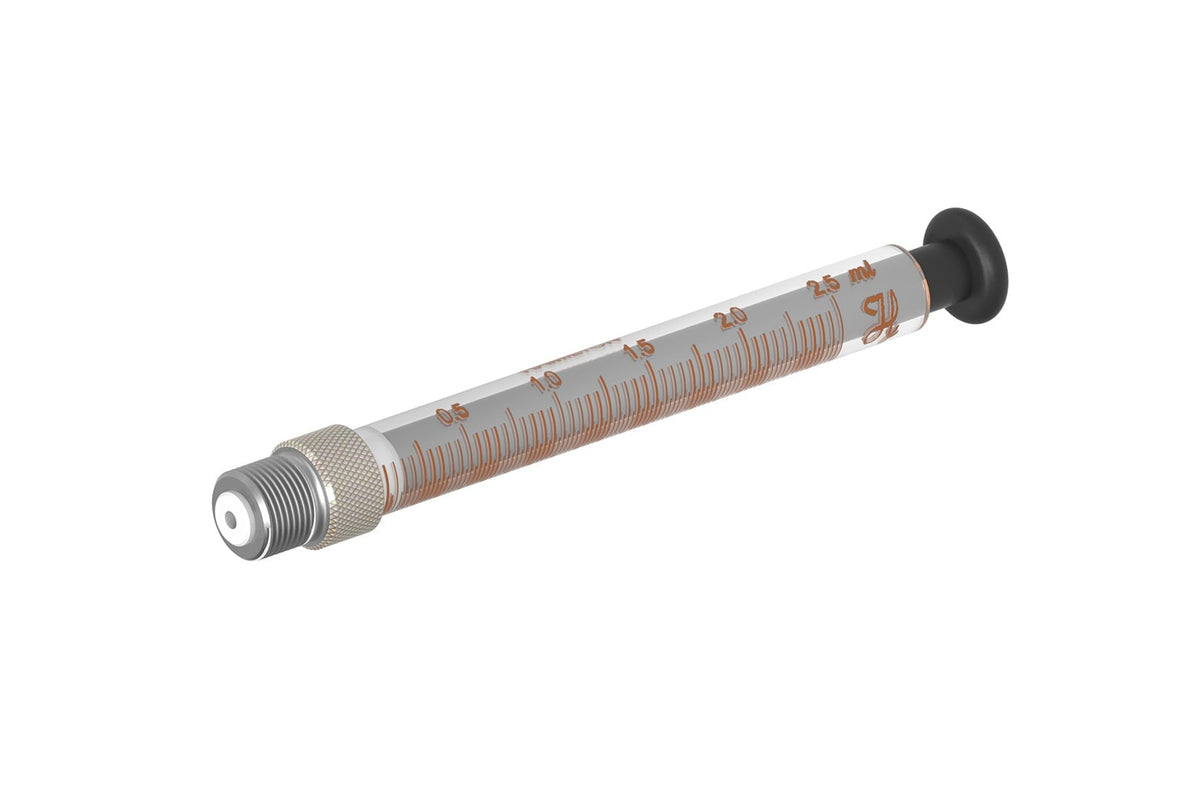

2.5 mL, Gastight Syringe, M10 (Male)
Vendor: Hamilton Company
SKU: 10103676
In stock
Hamilton 1000 series syringes dispense liquid and gas volumes in a multitude of applications like gas chromatography (GC), liquid chromatography (LC), analytical chemistry, and more. Designed for consistently leak-free performance, every Hamilton 1000 gastight syringe features a PTFE plunger tip to prevent sample loss. Additionally, a precision-machined glass syringe barrel makes the Hamilton 1000 gastight syringe an ideal choice when handling volatile gases and liquids with precise accuracy.
Choose from multiple sizes and options to match your scientific or analytical workflow and personal preference.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1001 | 1 mL | 4.61 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1002 | 2.5 mL | 7.29 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1005 | 5 mL | 10.30 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1010 | 10 mL | 14.57 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1025 | 25 mL | 23.03 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1050 | 50 mL | 32.54 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1100 | 100 mL | 32.54 mm | 120 mm | 0.7 MPa | 10 - 80 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 2.5 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | M10 (Male) |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 87.02 psig (6 bar) |
| Maximum Operating Temperature | 40°C / 104°F |
| Minimum Operating Temperature | 5°C / 41°F |
| Barrel Inner Diameter | 0.287 inches (7.29 mm) |
| Barrel Outer Diameter | 0.38 inches (9.65 mm) |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.287 inches (7.29 mm)
- Barrel outer diameter 0.38 inches (9.65 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Maximum operating temperature 40°C / 104°F
- Minimum operating temperature 5°C / 41°F
- Plunger style X-Style
- Pressure 87.02 psig (6 bar)
- Sales quantity 1 syringe per pack
- Sub category Gastight Syringes
- Syringe series 1000
- Syringe type Gastight
- Termination M10 (Male)
- Volume 2.5 mL
