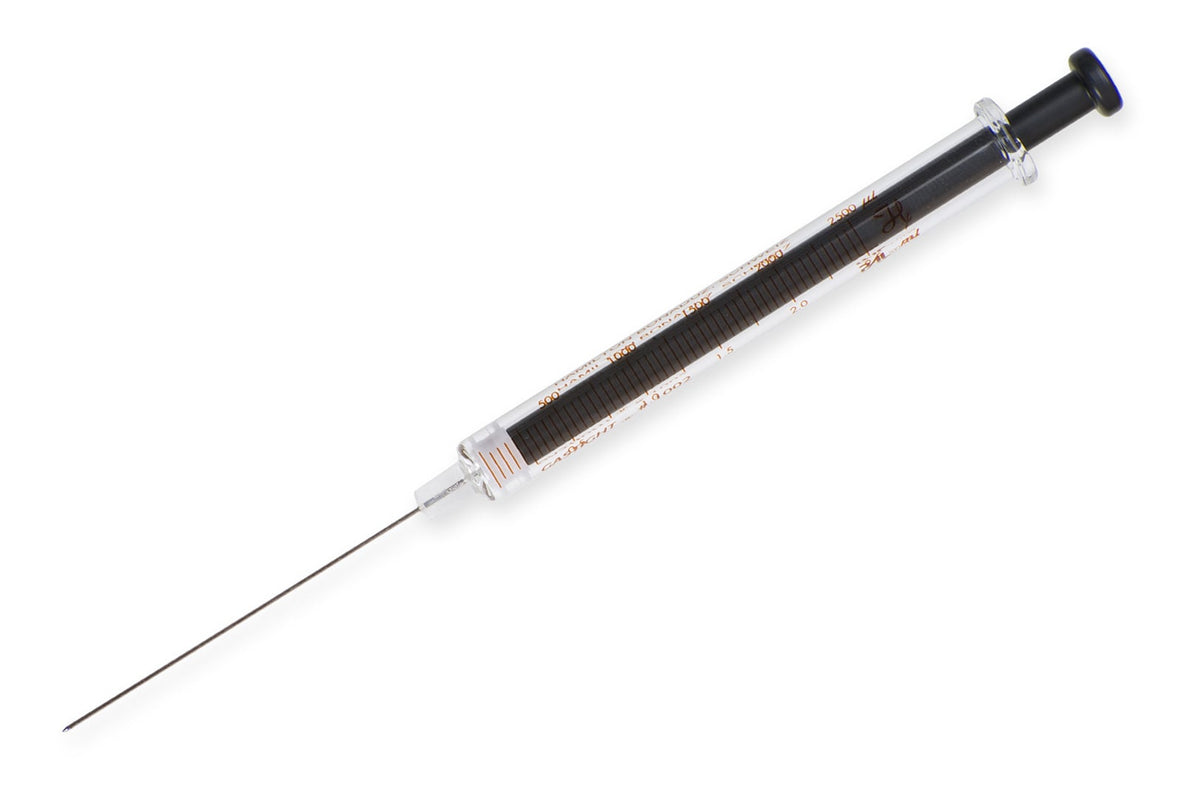

2.5 mL, Gastight, Headspace CTC PAL Autosampler Syringe, Cemented (N)
Vendor: Hamilton Company
SKU: 203084
Low stock
Hamilton's 1000 series, Gastight, Headspace # 1002 Cemented (N) CTC PAL Autosampler Syringe is designed for CTC CombiPAL autosampler system for gas chromatography headspace analysis. This syringe features a unique high-temperature plunger tip and a novel metal spring sealing system, ensuring excellent performance over a wide temperature range up to 110 °C. With higher temperature tolerance, new sealing system and a High Dynamic (HD) plunger, these syringes are optimized for increased durability, reproducibility and achieving higher throughput in headspace techniques.
Compatible Autosamplers:
CTC LEAP CombiPAL HD Headspace Syringes
Specifications
| Volume | 2.5 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Luer Tip Needle (LTN) |
| Needle | Cemented Needle |
| Gauge | 23 gauge |
| Point Style | 5: Conical Side Port |
| Needle Length | 56 mm (2.20 inches) |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 29 psig (2bar) |
| Maximum Operating Temperature | 230°F (110°C) |
| Minimum Operating Temperature | 68°F (20°C) |
| Needle Inner Diameter | 0.008 inches (0.20 mm) |
| Needle Outer Diameter | 0.025 inches (0.64 mm) |
| Std Needle Dead Volume | 4.53 μL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1002 |
Documents
Specifications
- Autoclavable No
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 23 gauge
- Maximum operating temperature 230°F (110°C)
- Minimum operating temperature 68°F (20°C)
- Needle Cemented Needle
- Needle inner diameter 0.008 inches (0.20 mm)
- Needle length 56 mm (2.20 inches)
- Needle outer diameter 0.025 inches (0.64 mm)
- Point style 5: Conical Side Port
- Pressure 29 psig (2bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 4.53 μL
- Sub category Gastight Syringes
- Syringe model number 1002
- Syringe series 1000
- Syringe type Gastight
- Termination Luer Tip Needle (LTN)
- Volume 2.5 mL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
