14 Gauge, Hat Needle

Name: 14 Gauge, Hat Needle
Brand: Hamilton Company
SKU: 90814
Price: 545.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: 90814

545.00 NIS

Stock on Request

In stock

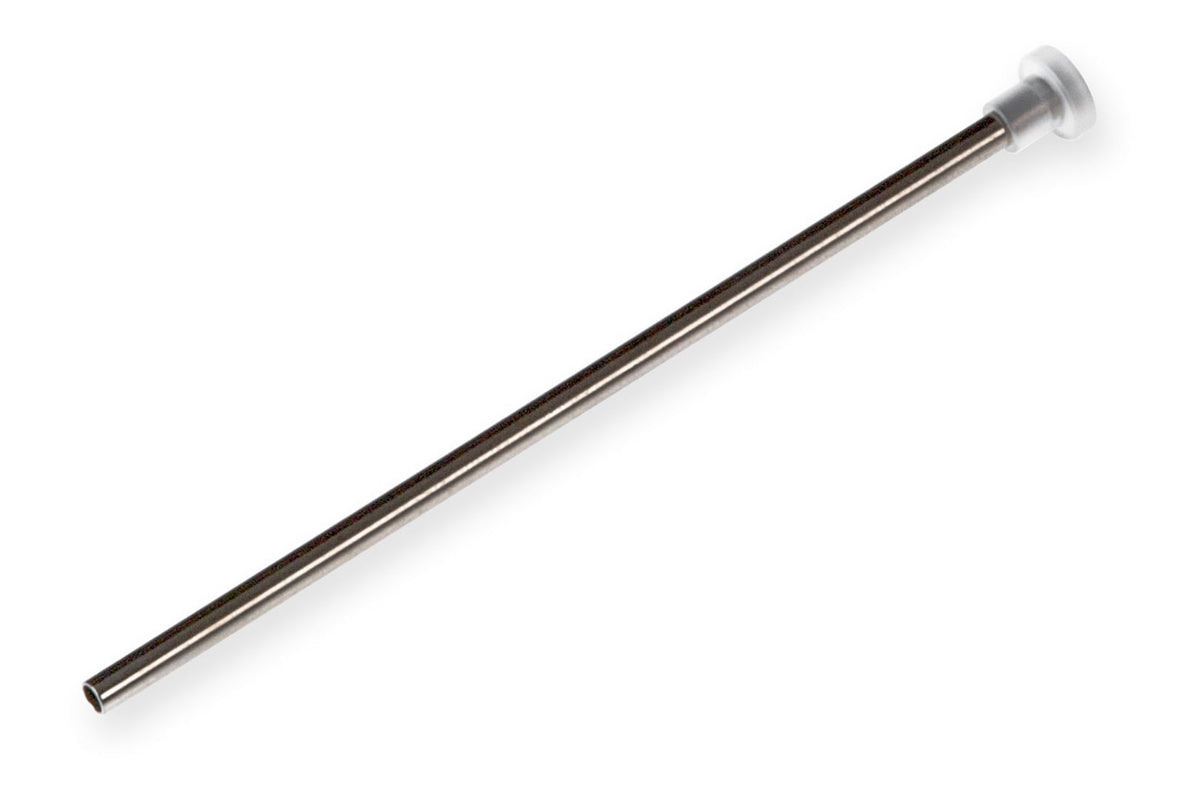

The 14 Gauge Hat Needle (PN: 90814) connects directly to flat-bottom valve ports and can be used with any 1/4-28 Hamilton valve when paired with Needle Bushing PN 35056. The needle length is measured from the tip to the start of the installation hardware, with the total length to the back of the hub being the specified length plus 14.22 mm, ensuring the exposed needle length matches the ordered specification. Available in packs of 3, with customizable lengths (10-304mm) and point styles (2,3 or 4).

Specifications

Gauge	14 gauge
Point Style	2, 3, or 4
Needle Length	Custom Needle Length
Sales Quantity	3 needles per pack
Hub	Hat Needle

Documents

Specifications

Gauge 14 gauge
Hub Hat Needle
Needle length Custom Needle Length
Point style 2, 3, or 4
Sales quantity 3 needles per pack
Sub category Specialty Needles
