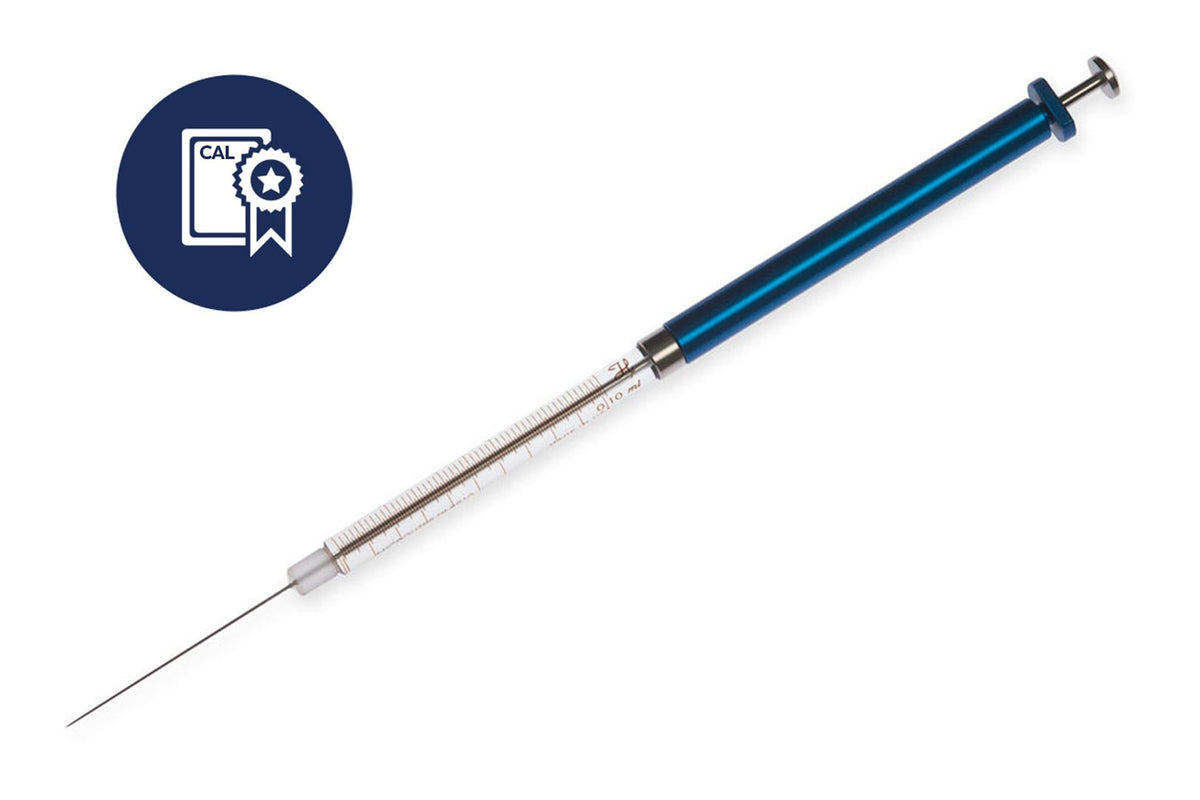

100 µL, Microliter Syringe, Cemented Needle (N), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL84858
In stock
Engineered from high-quality materials, Hamilton’s 800 Series Microliter Syringes have a Syringe Holder that prevents the barrel from heating up or causing dispensing inaccuracies. With proper care and handling, Microliter syringes provide unsurpassed performance in precision liquid handling.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 85 | 5 µL | 0.34 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
| 801 | 10 µL | 0.49 mm | 54 mm | 7 MPa | 10 - 115 °C1 |
| 802 | 25 µL | 0.73 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 805 | 50 µL | 1.03 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 810 | 100 µL | 1.40 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 825 | 250 µL | 2.30 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or Luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 100 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 800 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.061 inches (1.46 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 810 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.061 inches (1.46 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Reinforced Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Microliter Syringes
- Syringe model number 810
- Syringe series 800
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 100 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
