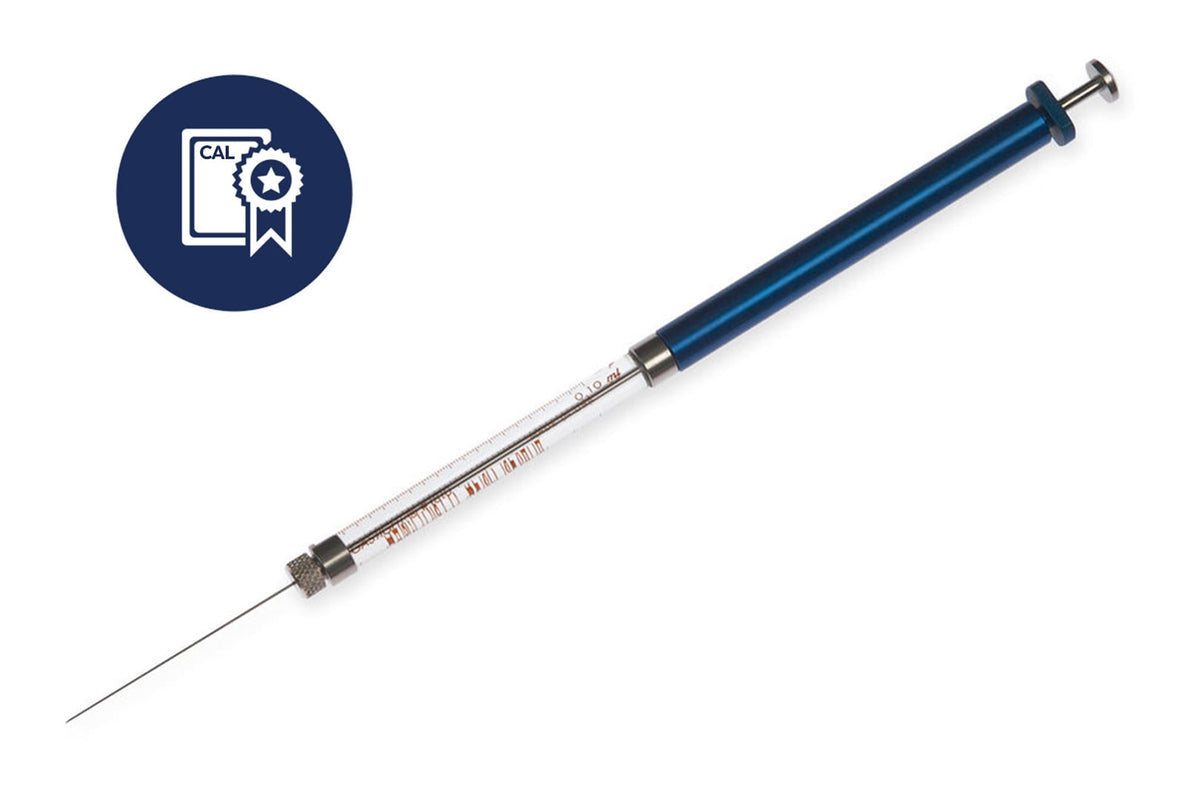

100 µL, Gastight Syringe, Removable Needle (RN), Calibrated
Vendor: Hamilton Company
SKU: CAL84886
In stock
For the ultimate gas or liquid sample handling, look to the Hamilton 1800 Series Syringes. These gastight syringes feature a blue Syringe Holder. This clever innovation prevents heat transfer from your hands to the syringe barrel to protect heat-sensitive samples. Additionally, its reinforced plunger prevents bending during injections. This gastight syringe series is ideal to dispense volumes from 1 µL up to 250 µL.
Multiple volumes and other selectable options are available.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1801 | 10 µL | 0.46 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1802 | 25 µL | 0.73 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1805 | 50 µL | 1.03 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1810 | 100 µL | 1.40 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1825 | 250 µL | 2.30 mm | 60 mm | 3 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 100 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1800 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.057 inches (1.46 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1810 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.057 inches (1.46 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Reinforced Plunger
- Point style 2: Curved, Beveled
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1810
- Syringe series 1800
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 100 µL
