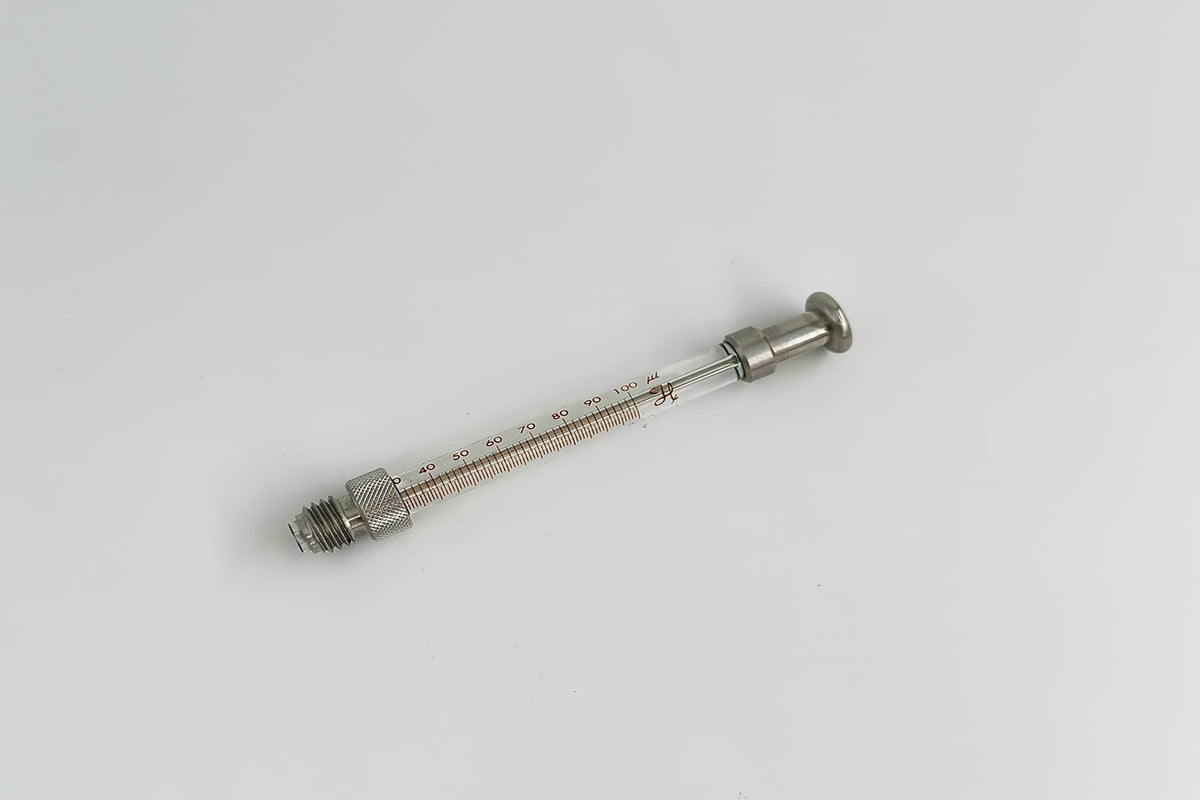

100 µL, Gastight Syringe, M10 (Male)
Vendor: Hamilton Company
SKU: 10103672
In stock
As the gastight version of our renowned 700 series syringes, Hamilton 1700 Series Gastight Syringes deliver high-precision liquid and gas handling in analytical and laboratory applications. Constructed with a high-precision glass barrel and a gastight PTFE plunger tip, the 1700 series syringes are ideal for applications requiring high accuracy and repeatability.
Select from multiple volumes, syringe types, terminations, and needles for diverse application compatibility.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1701 | 10 µL | 0.46 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1702 | 25 µL | 0.73 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1705 | 50 µL | 1.03 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1710 | 100 µL | 1.40 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1725 | 250 µL | 2.30 mm | 60 mm | 3 MPa | 10 - 115 °C1 |
| 1750 | 500 µL | 3.26 mm | 60 mm | 3 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle, then the maximum temperature is 50 °C.
Specifications
| Volume | 100 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | M10 (Male) |
| Plunger Style | Standard Plunger |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 87.02 psig (6 bar) |
| Maximum Operating Temperature | 40°C / 104°F |
| Minimum Operating Temperature | 5°C / 41°F |
| Barrel Inner Diameter | 0.057 inches (1.46 mm) |
| Barrel Outer Diameter | 0.303 inches (7.7 mm) |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.057 inches (1.46 mm)
- Barrel outer diameter 0.303 inches (7.7 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Maximum operating temperature 40°C / 104°F
- Minimum operating temperature 5°C / 41°F
- Plunger style Standard Plunger
- Pressure 87.02 psig (6 bar)
- Sales quantity 1 syringe per pack
- Sub category Gastight Syringes
- Syringe series 1700
- Syringe type Gastight
- Termination M10 (Male)
- Volume 100 µL
