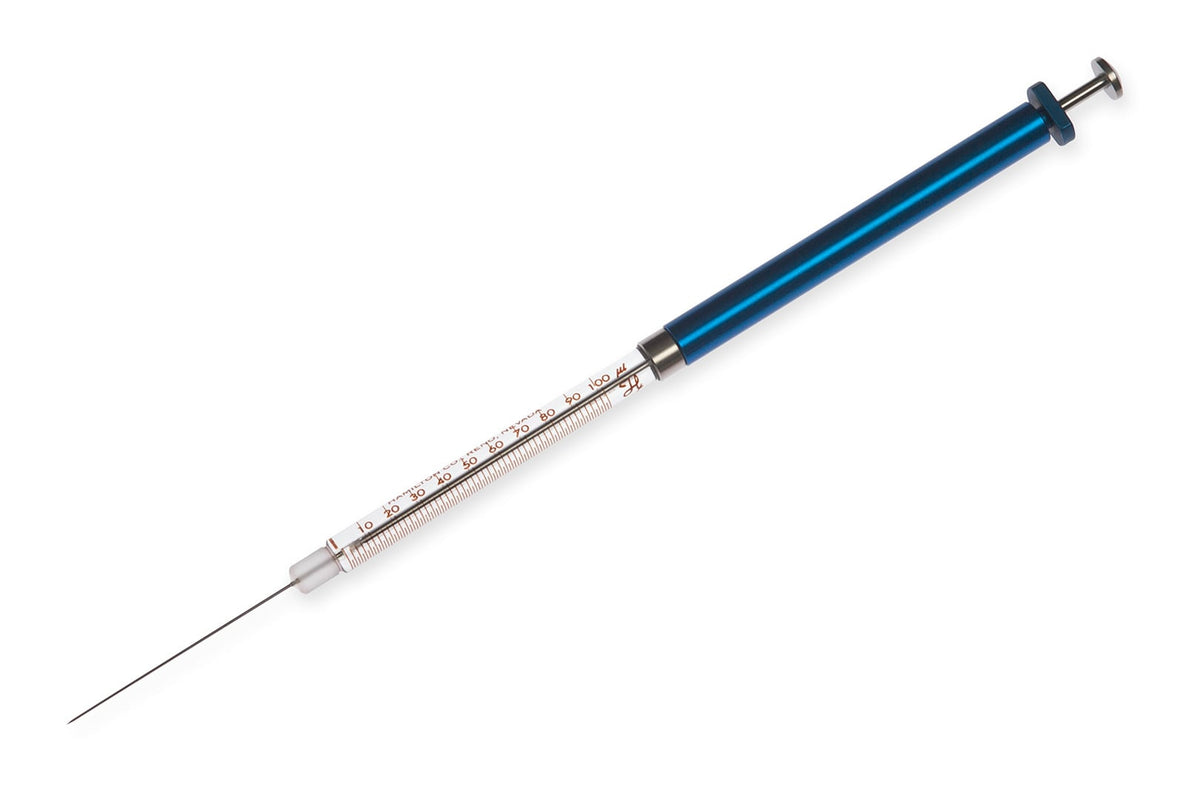

100 µL, Gastight Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 84884
In stock
Hamilton's 1800 series, Gastight # 1810 Cemented Needle (N) Syringe is a reinforced plunger version of the 1700 Gastight syringe. This syringe also features a blue Syringe Holder attached to the flange. This unique component safeguards against any heat transfer from the barrel, ensuring accurate dispensing. The reinforced plunger provides crucial support to delicate, small-volume plungers, preventing bending and maintaining injection integrity.
Compatible with Small RN Hub Needles
Common applications Analytical Chemistry, Gas Chromatography Mass Spectrometry (GC-MS)
Specifications
| Volume | 100 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1800 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.057 inches (1.46 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1810 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.057 inches (1.46 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Reinforced Plunger
- Point style 2: Curved, Beveled
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1810
- Syringe series 1800
- Syringe type Gastight
- Termination Cemented Needle (N)
- Volume 100 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
