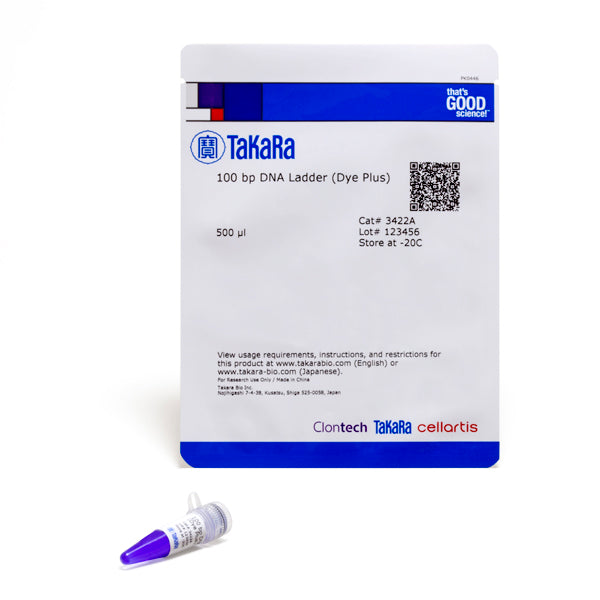

100 bp DNA Ladder (Dye Plus)

This marker consists of 10 double-stranded DNA fragments ranging from 100 to 1,000 bp in multiples of 100 bp, plus an additional 1,500 bp fragment. The 500 bp fragment contains triple the mass of the other fragments and serves as a visible reference indicator; all other fragments appear with equal intensity on the gel. Since this product is premixed with loading dyes and glycerol, it is possible to use this product directly in agarose gel electrophoresis.

Features

• 3401–3413A: 10 mM Tris-HCl (pH 8.0), 1 mM EDTA
• 3407A and 3407B: 10 mM Tris-HCl (pH 7.4), 1 mM EDTA
• 3415: 10 mM Tris-HCl (pH 8.0), 1 mM EDTA, 6% glycerol, 0.02% bromophenol blue, 0.02% xylene cyanol, 0.02% NaN3
• Supplied 6X Loading Buffer: 36% glycerol, 30 mM EDTA, 0.05% bromophenol blue, 0.035% xylene cyanol

Documents

• Certificate of Analysis (PDF)
• Safety Data Sheet (PDF)
• User Manual (PDF)
