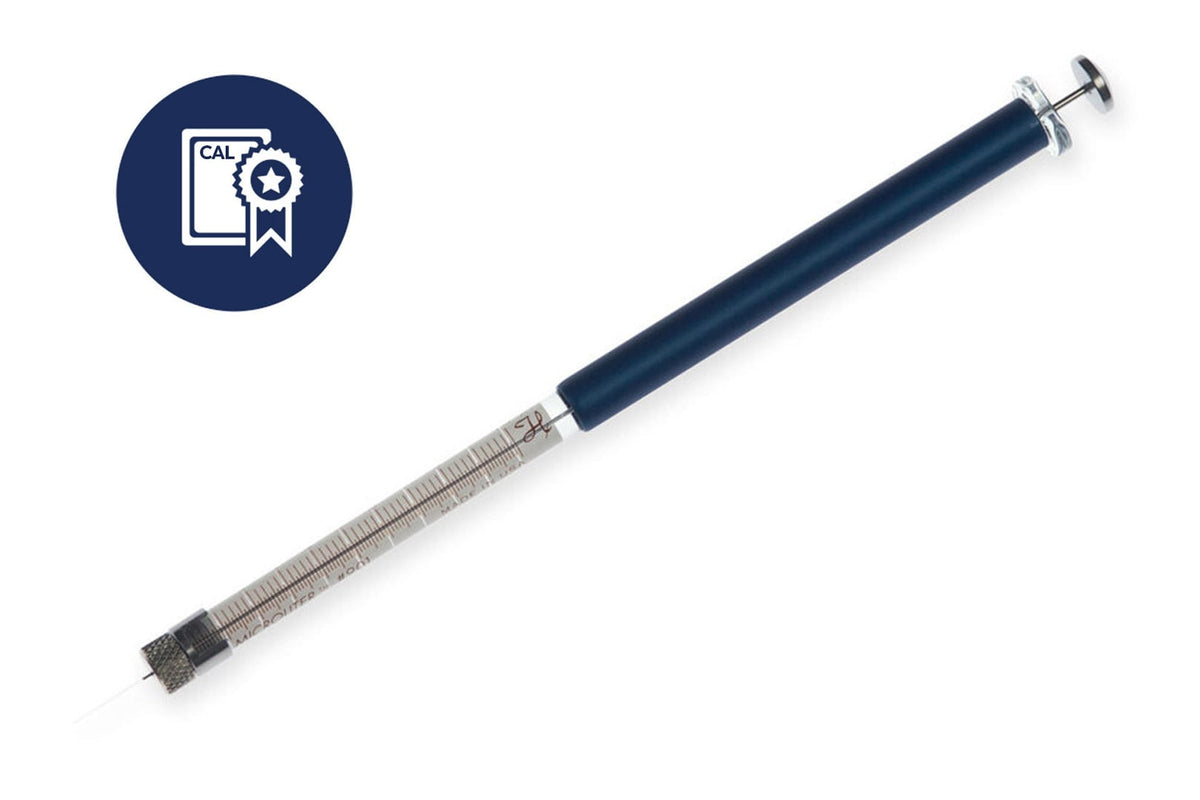

10 µL, Microliter Syringe, Removable Needle (RN), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL7648-01
In stock
For added protection during HPLC and everyday lab applications, trust in the 900 Series Microliter Syringe from Hamilton. This cost-effective alternative to our 800 Series Syringe has an integrated, non-removable Syringe Holder with a reinforced plunger that will not accidentally bend during injections. Its protective sleeve prevents heat transfer to sensitive samples.
These reinforced lab syringes handle 0.5 μL to 10 μL liquid volumes for HPLC and other general laboratory uses.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 95 | 5 µL | 0.34 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
| 901 | 10 µL | 0.49 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 900 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle length No Needle Included
- Plunger style Reinforced Plunger
- Point style No Needle Included
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Microliter Syringes
- Syringe series 900
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
