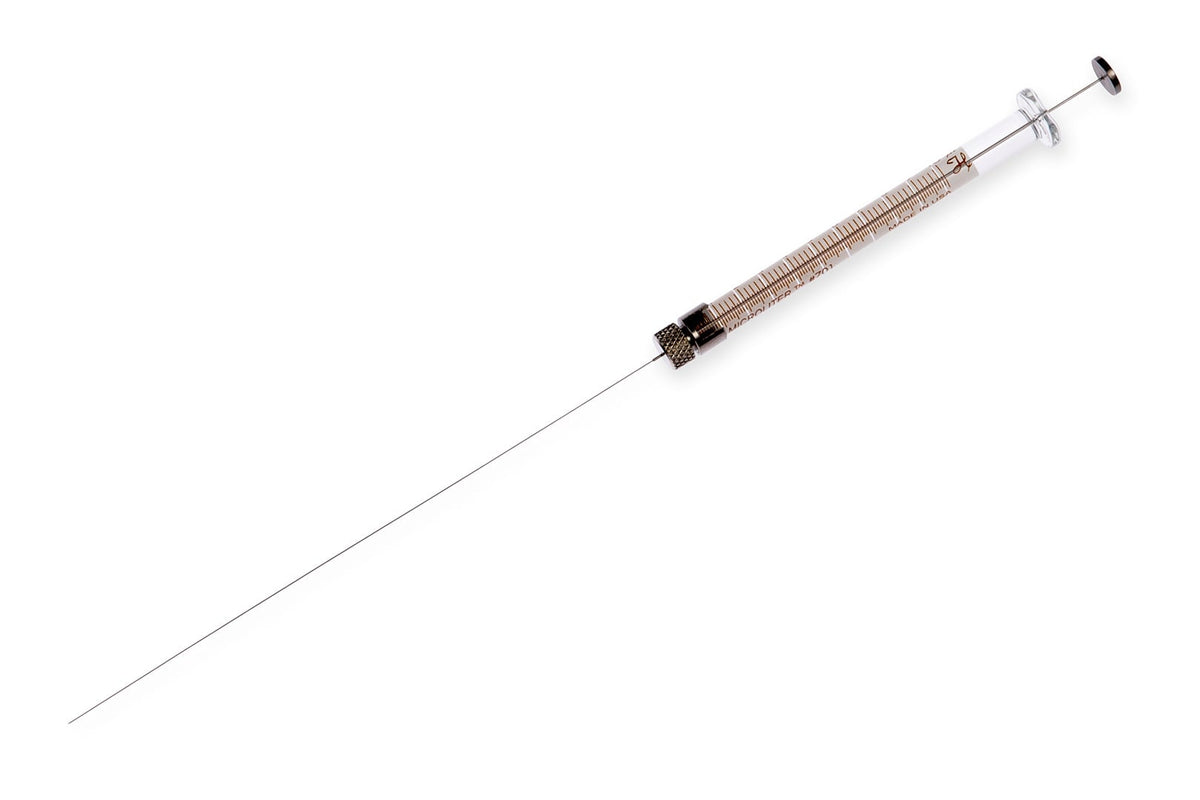

10 µL, Microliter On-Column GC Syringe, Removable Needle (RN)
Vendor: Hamilton Company
SKU: 80386
In stock
Hamilton's 700 series, Microliter # 701 Removable Needle (RN) Syringe is designed for On-Columns manual GC injections with special needle specifications adjusted to the columns with 0.25 mm inner diameter. On-column injection employs longer needles with smaller outer diameters for the direct introduction of the liquid sample into the column. Direct introduction into the column is useful for the analysis of thermally unstable samples. Hamilton's 700 series lab syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 32 gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 4.92 inches (125 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0433 inches (0.11 mm) |
| Needle Outer Diameter | 0.00945 inches (0.24 mm) |
| Std Needle Dead Volume | 1.15 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 32 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.0433 inches (0.11 mm)
- Needle length 4.92 inches (125 mm)
- Needle outer diameter 0.00945 inches (0.24 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.15 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 10 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
