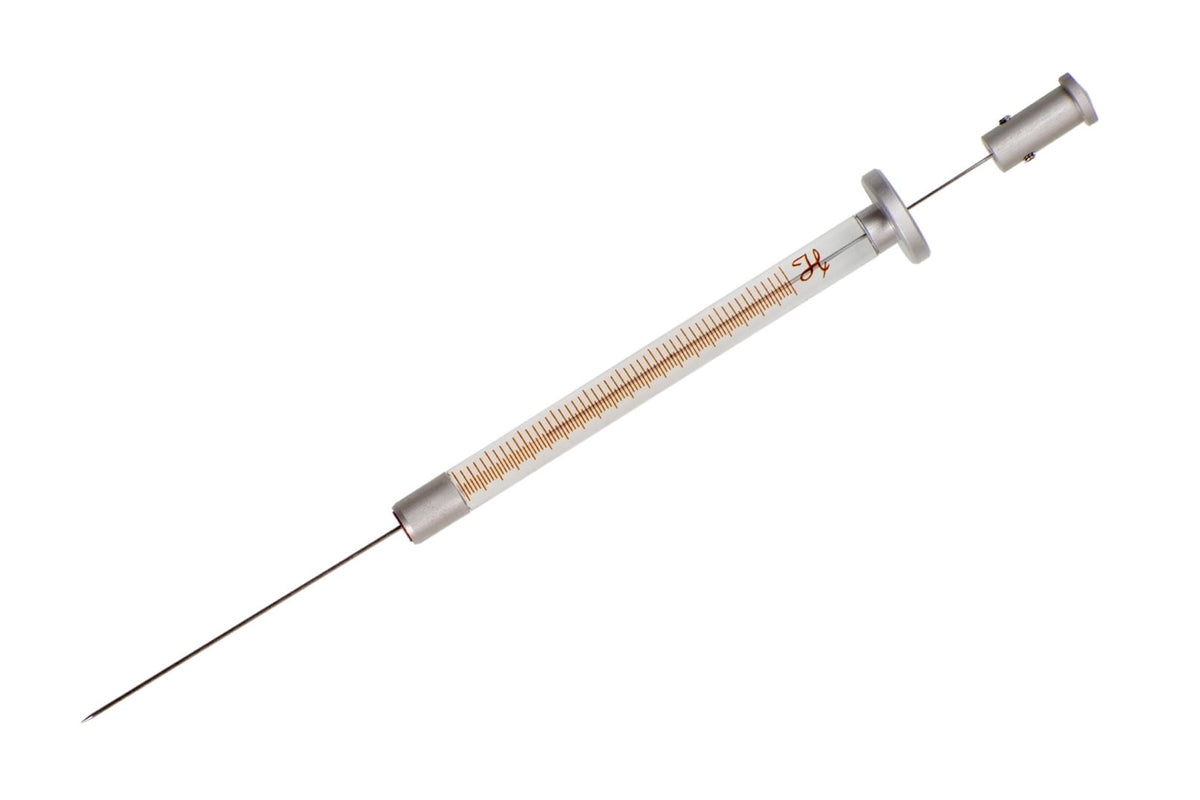

10 µL, Microliter CTC C-Line Autosampler Syringe (6.6 mm)
Vendor: Hamilton Company
SKU: 203072
Low stock
Hamilton's 700 series, Microliter #701 Fixed Needle (N) Syringe is designed for use with CTC/LEAP PAL GC autosamplers.
C-Line syringes incorporate several unique design features that ensure superior performance. The unique flange alignment design aids in installation and results in fewer bent needles while the plunger button can be adjusted to prevent plunger tip damage. An innovative direct attachment design of the needle to the barrel minimizes sample carryover
Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Fixed Needle (FN) |
| Needle | Fixed Needle, no glue or cement |
| Gauge | 26s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2.00 inches (50.8 mm) |
| Plunger Style | X-Style CTC |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.019 inches (0.474 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 26s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 20°C / 68°F
- Needle Fixed Needle, no glue or cement
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2.00 inches (50.8 mm)
- Needle outer diameter 0.019 inches (0.474 mm)
- Plunger style X-Style CTC
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.64 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Fixed Needle (FN)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
