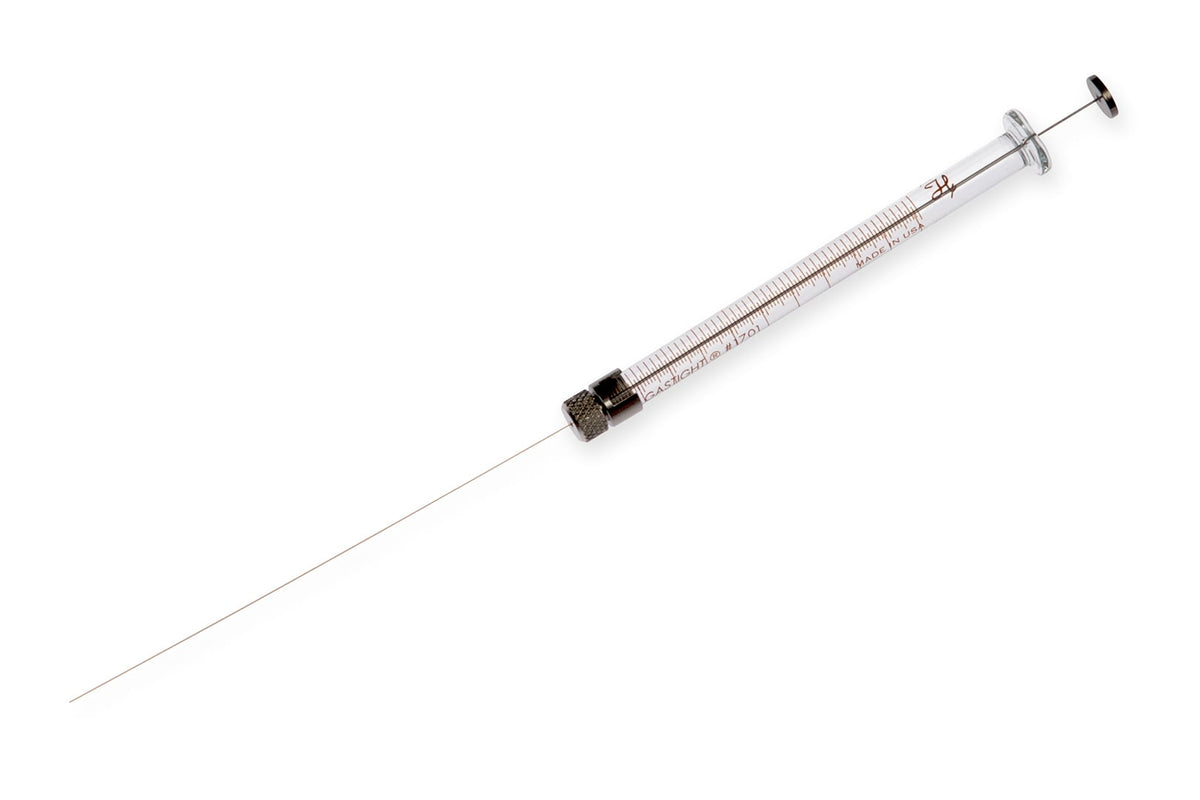

10 µL, Gastight Syringe, Removable Needle (RN)
Vendor: Hamilton Company
SKU: 87404
In stock

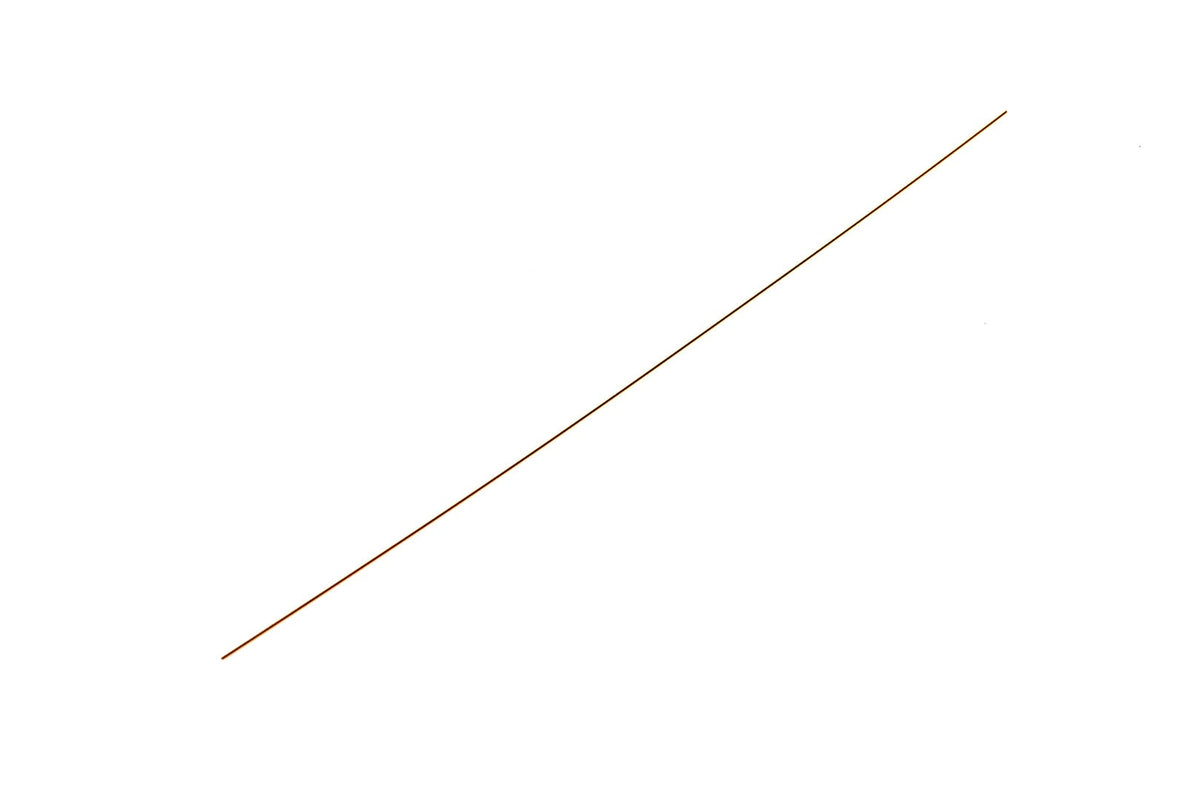

Hamilton's 1700 series, Gastight # 1701 Removable Needle (RN) Syringe is designed for On-Columns manual GC injections with special needle specifications adjusted to the inner diameter of the column (0.17 mm needle for columns with 0.25 mm inner diameter). On-column injection employs longer needles with a smaller outer diameter for the direct introduction of the liquid sample. Hamilton 1700 series syringes are Gastight versions of the 700 series, ideal for dispensing liquids and gases. Their polymer plunger tip ensures a leak-free seal. These syringes offer up to 1% accuracy, superior durability, and are made from high-quality, chemically resistant materials.
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 0.17 mm |
| Point Style | 3: Blunt |
| Needle Length | 3.94 inches (100 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | PTFE, boroscilicate glass, fused silica |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.00394 inches (0.10 mm) |
| Needle Outer Diameter | 0.00669 inches (0.17 mm) |
| Std Needle Dead Volume | 0.91 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1701 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.018 inches (0.460 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path PTFE, boroscilicate glass, fused silica
- Gas sterilizable Yes
- Gauge 0.17 mm
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.00394 inches (0.10 mm)
- Needle length 3.94 inches (100 mm)
- Needle outer diameter 0.00669 inches (0.17 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.91 µL
- Sub category Gastight Syringes
- Syringe model number 1701
- Syringe series 1700
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
