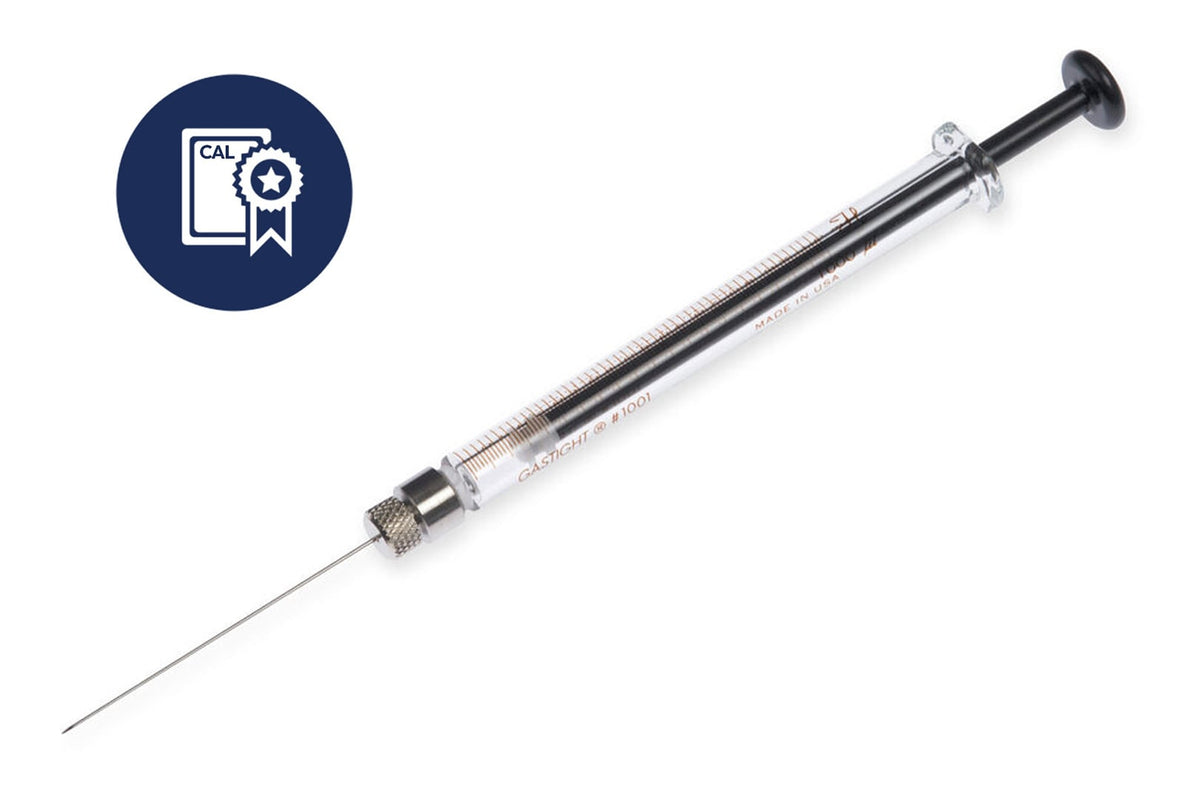

1 mL, Gastight Syringe, Removable Needle (RN), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL81330
In stock
Hamilton 1000 series syringes dispense liquid and gas volumes in a multitude of applications like gas chromatography (GC), liquid chromatography (LC), analytical chemistry, and more. Designed for consistently leak-free performance, every Hamilton 1000 gastight syringe features a PTFE plunger tip to prevent sample loss. Additionally, a precision-machined glass syringe barrel makes the Hamilton 1000 gastight syringe an ideal choice when handling volatile gases and liquids with precise accuracy.
Choose from multiple sizes and options to match your scientific or analytical workflow and personal preference.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1001 | 1 mL | 4.61 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1002 | 2.5 mL | 7.29 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1005 | 5 mL | 10.30 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1010 | 10 mL | 14.57 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1025 | 25 mL | 23.03 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1050 | 50 mL | 32.54 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1100 | 100 mL | 32.54 mm | 120 mm | 0.7 MPa | 10 - 80 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Removable Needle (RN) |
| Needle | Large RN |
| Gauge | 22 gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.181 inches (4.61 mm) |
| Barrel Outer Diameter | 0.355 inches (9.02 mm) |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 6.81 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1001 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.181 inches (4.61 mm)
- Barrel outer diameter 0.355 inches (9.02 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Large RN
- Needle inner diameter 0.0161 inches (0.41 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 200 psig (13.8 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 6.81 µL
- Sub category Gastight Syringes
- Syringe model number 1001
- Syringe series 1000
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 1 mL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
