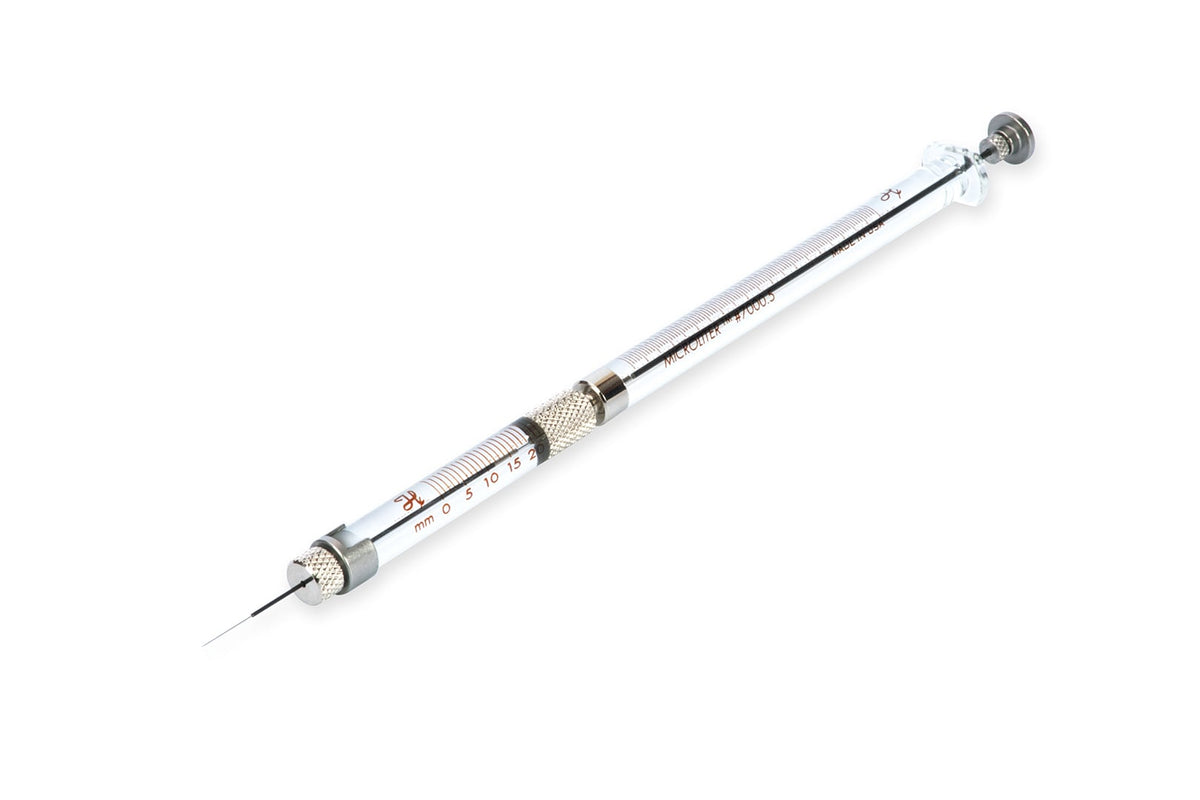

0.5 µL, Microliter Neuros Syringe, Knurled Hub (KH)
Vendor: Hamilton Company
SKU: 65457-01
In stock
Hamilton's 7000 series is a Microliter #7000.5 Knurled Hub (KH) Neuros Syringe offering a zero dead volume syringe technology that provides unprecedented functionality for controlled animal injections. Developed specifically for neuroscience applications, this animal injection syringe enables the delivery of microvolumes to an exact location while minimizing injection site damage. Neuros syringes come with two types of protective needle sleeves. The sleeve with a blind stop is perfect for cannulated applications and ensures targeted administration with an adjustable penetration depth. The version without a blind stop works best with stereotaxic holders. Both models provide an adjustable needle exposure of 0 to 20 mm.
Common applications Veterinary Sciences, Analytical Chemistry, Gas Chromatography Mass Spectrometry (GC-MS)
Specifications
| Volume | 0.5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 7000 |
| Termination | Neuros |
| Needle | Knurled Hub (KH) |
| Gauge | 32 gauge |
| Point Style | 3: Blunt |
| Needle Length | 0 - 20 mm adjustable |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Tungsten, Borosilicate Glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 6000 psig (413.7 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.004 inches (0.103 mm) |
| Barrel Outer Diameter | 0.308 inches (7.82 mm) |
| Needle Inner Diameter | 0.004 inches (0.10 mm) |
| Needle Outer Diameter | 0.009 inches (0.229 mm) |
| Std Needle Dead Volume | 0 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 7000.5 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.004 inches (0.103 mm)
- Barrel outer diameter 0.308 inches (7.82 mm)
- Fluid path SST, Tungsten, Borosilicate Glass
- Gas sterilizable Yes
- Gauge 32 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Knurled Hub (KH)
- Needle inner diameter 0.004 inches (0.10 mm)
- Needle length 0 - 20 mm adjustable
- Needle outer diameter 0.009 inches (0.229 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 6000 psig (413.7 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0 µL
- Sub category Microliter Syringes
- Syringe model number 7000.5
- Syringe series 7000
- Syringe type Microliter
- Termination Neuros
- Volume 0.5 µL
links and documants
- Datasheet url Click here
- Instructions url Click here
- Source url Click here
- Specification url Click here
